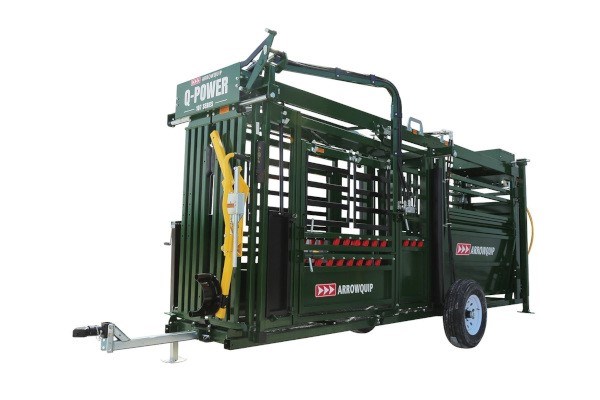

Arrowquip's new portable hydraulic chute for cattle with 8' alley comes with the new Q-Power 107 Series, the premiere hydraulic chute of the era. From the new electric jacks to the superior hydraulics, this system has been designed with cattle flow and ease of use for operators in mind. With the new 3E head gate design and Easy Flow Alley removable panels, plus everyone's favourite true rubber floor, everything is designed with cattle behavior in mind to keep your cattle flowing in the right direction.
This portable duo allows you to do it all, and so much more in way less time.
Q-Power 107 Series Portable Chute for Cattle & Alley Features & Benefits
Q-Power 107 Series Hydraulic Cattle Chute
The NEW Q-Power 107 Series is at the forefront of this powerful duo. With superior, fast-touch hydraulic response and unparalleled access, this portable hydraulic chute for cattle enables you to do your tasks faster, safer, and much easier than ever before.
Easy Flow Alley
The new and improved Easy Flow Adjustable Cattle Alley allows you to control what cattle see with two NEW removable panels that that can be arranged in a variety of ways. The alleys narrow down towards the center and are cradle-shaped to ensure that your cattle keep moving forward in a smooth, straight line.
Enhanced Safety
Looking for a safer way to manage your livestock? The Q-Power 107 Series cattle chute and alley is designed for optimal livestock and handler safety. Cattle are protected with two emergency exit options on each side of the unit - one in the alley, and one in the chute. In addition, safety is enhanced for handlers with proper cattle control, and a variety of access gates that provide proper access to livestock as necessary. For an even safer cattle handling experience, add the Q-Catch Cattle Head Holder and Trimming Bar.
Engineered to Move
This portable hydraulic chute for cattle is engineered with portability in mind. The new, enhanced frame boasts 2" x 6" beams at the top and 3" x 3" beams at the bottom, ensuring the structural integrity of your unit. Additionally, the improved hitch has an added gusset for support, multiple height options, and the wheels are easily installed and removed with two pins.
Hydraulic Jacks
The Q-Power 107 Series portable hydraulic cattle chute and alley is now offered with hydraulic jacks. The Innovations Team has worked diligently to introduce these jacks based on market feedback from consumers looking for an easier to use jack option.
The jacking system now features a 165 AMP Power Unit, 12V battery with 200 AMP breaker to protect the power unit, and military grade 12W Solar Panel that keeps the battery in optimum condition with constant pulse technology. Both the main jack and front hitch jack are powered by the hydraulic jacks, and the selector valve allows the operator to control which jack is being raised or lowered. The unit is easily charged with the terminals on the side of the power unit, and includes a custom designed hydraulic manifold for accurate flow division and load hold.
SPECS:
- Lift and lower the unit easily with a fully 165 AMP hydraulic jacking system
- Main jack and front hitch jack are both hydraulically powered for faster setup and tear-down
- 12-watt military grade solar panel uses pulse technology to keep the battery in optimum condition
- Powered by a 12V Battery with 200-amp breaker to protect the motor
- Terminals located on the outside of the box for easy charging and jumping
- Control pendant manages both jacks from a single point with a selector valve to switch between jacks
- Control pendant is magnetic and can be attached to the chute easily
- Jacks are contained in a sheet metal jack box which is powder-coated for longevity and durability
- Fully enclosed jack box features a hinged lid, latch, and optional lock for security purposes
Q-Power 107 Series Portable Chute for Cattle & Alley Specs & Compare
- Hydraulics are controlled from the pivoting swing arm: 3E Head Gate, 3E Tail Gate, Squeeze, Head Sweep (Optional)
- Hydraulic Squeeze ranges from 29.5" fully open to 7.75" fully closed
- Improved wide-range pivoting swing arm has a larger range and allows you to operate the hydraulic controls anywhere along either side of the chute
- New head gate design uses light to draw cattle into the chute
- Curtain-style head gate opens to a full 30" top to bottom for cattle to exit the chute
- Poly-coated slam latches eliminate metal clanging
- Two rows of rump fingers ensure safety no matter the size of the animal
- Poly-composite rump fingers are engineered to endure high pressure
- Vet door opens in both directions for a full 180° of maneuverability
- Low-profile latch ensures the vet cage door will not swing to the inside of the chute when slammed shut
- Swing-out top and bottom access doors can be used individually or together to access the entire animal
- Side access panels are removable and can be configured in a variety of positions to suit your operation's needs
- 12.75" top to bottom needle door access
- New drop-down needle bar allows for quick injections
- Rectangular tubing limits cattle bruising
- Pivot and latch points feature poly bushings for silent operation
- True virgin rubber flooring dampens sound and provides great traction
- Rubber floor is backed by a lifetime guarantee
- Transport-ready with the new wheel kit add-on
- Head Gate locking pin adds safety when transporting the cattle chute, or completing maintenance
- Both sides of the Easy Flow Alley can be adjusted from one side
- Cradle-shaped Easy Flow Alley section ranges from 29.5" to 18" in width
- Both side panels drop down fully, allowing the handler to access the animal in case of emergency
- Safety latches on the Easy Flow Alley side panels add security and control when adjusting, and ensure the sides will not drop accidentally
- Easy Flow alleys come with removable panels so you can control what cattle see in the alleyway
- Single piece steel frame has been reinforced with new 2"x6" beams that run the length of the unit
Available Add-Ons / Options
Hydraulic Head Sweep
This simple, gentle, and effective option can be connected to the hydraulics on your squeeze chute to hold the animal's head in place with ease.
Third-Generation Cattle Head Holder [Patented]
The third generation of the Q-Catch Head Holder is heavier, stronger, and more durable than ever before. The cattle head holder secures the cows head immobile, allowing the rancher safe, up-close access. Featuring a patented single lever push-pull operation, the head holder simplifies any procedure necessary.
Sternum Bar
The sternum bar keeps your cattle upright during stressful procedures by supporting the sternum. The improved sternum bar is fully sheeted to eliminate hoof traps and can be installed with only two bolts.
Trimming Bar
The trimming bar keeps cattle contained when it is required that both side doors are opened for hoof trimming. This simple and effective option can be installed or removed from the chute with just 4 bolts, and can be adjusted to accommodate cattle of different sizes.
Scale Platform
The Scale Platform is custom designed for the 8' Adjustable Easy Flow Alley section of the portable hydraulic chute for cattle and alley duo. For easy installation, the side panels can be lifted and held in place with the slam latches, allowing the operator to slide the Scale Platform underneath. These heavy-duty, 1/4" aluminum plates feature raised sides ensure cattle will not slip off, and allow you to quickly and effectively weigh your cattle as they move through the handling system.
Scale Mount Plates
Scale Mount Plates designed to support 23" alleyway load bars when using the Arrowquip Scale Platform. Designed to work with Gallagher and Tru-Test load bars.
Electric Hydraulic Power Pack
5HP electric motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 6.2GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
Gas Hydraulic Power Pack
7HP gas motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 6.2GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
Tractor Hydraulic Hook-Up
Enables you to power the squeeze chute from the hydraulics on a tractor or other hydraulic equipment.
NEW Stealth Upgrade Electric Power Pack
The NEW Stealth Upgrade Electric Power Pack is a truly silent power source with a 7.5HP electric motor. Operating pressure of 900PSI, with relief set at 1000PSI. The 10-gallon tank delivers 10.9GPM. Pioneer female ends on the power pack allow the connecting hose on the chute to plug straight in.
Manual Jacks
All Arrowquip portable hydraulic chutes for cattle are available with the option of manual jacks if preferred.
