E15X Features & Benefits

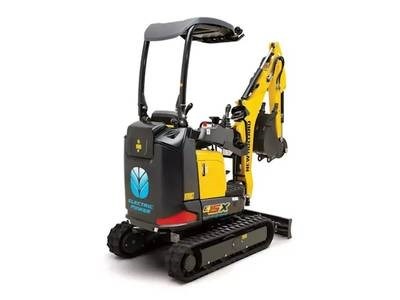

2026 New Holland Construction Mini Excavators E15X
Introducing the E15X - New Holland’s first electric vehicle. A mini excavator that is compact in size, has zero emissions to safely operate indoors and can complete a full day of work. You’ll be able to power through projects in noise-sensitive locations with 21.4 HP of clean engine power and exceptional performance capabilities. Panolin biodegradable oil and lubricants make this machine as equally environmentally friendly as it is job site savvy.
Features may include:
MINI EXCAVATOR, BIG POWER- The 21.4 gross capacity (16 kW) lithium ion battery provides plenty of power to the load-sensing hydraulics for a smooth and efficient operation in this compact and easily transportable package, measuring 7.5 ft (2.300 m) in height. The E15X is designed to be a champion on your indoor job site. A minimum tail swing overhang of 6 in (152 mm) with tracks that hydraulically retract to 31.1 in (790 mm) overall width to easily fit through doorways and then expand to 41.3 in (1050 mm), allowing for an operation that's smooth as butter.
- The standard arm on the E15X provides a maximum 7 ft 5 in (2.290 m) of dump height and 2600 lbf (1150 daN) in bucket breakout force.
- The E15X has a left swing angle of 70 degrees and a right swing angle of 60 degrees. A larger left swing angle improves visibility to the side of the door for a more precise operation. Ample boom swing angles allow for efficient parallel digging, good for working alongside obstacles. Plus, forgoing the need to reposition the machine means you can complete the job faster. Operators can take full control of the boom swing from the electro-proportional switch on the left joystick. Boom pivot pins are secured by plate and bolt to reduce lateral movement and provide reliable performance in tough conditions. Plus, the pins give way to a long service life and lower whole-life operating costs.
- Standard digital color LCD monitor provides easy battery management and access to machine settings. The 5.7 in (14.5 cm) touchscreen helps to keep your operation in motion when key machine details are easily accessible - such as engine speed, coolant and hydraulic oil temperature and maintenance information including fault codes and diagnostics. Further improve productivity and reduce downtime with simplified daily checks when all key check and service points are grouped together.
- Powering demanding attachments is a key New Holland advantage. With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking. Job site versatility is bound to soar with the added advantage of high constant hydraulic flow and quick coupler. The Hydraulic Quick Coupler allows for hands-free coupling and release of buckets. Plus, safely swap between large, heavy attachments. Mechanical quick lock attachment brackets are also available.
E15X Specs & Compare
Operational
Operating Speed
Travel - Low/High: 1.1 mph / 2.4 mph
Operating Conditions
Arm Tearout: 1416 lbf | Bucket Breakout: 2600 lbf
Hydraulics
Hydraulic Flow
Main Pump: 7.4 gallon (US)/min
Dimensions
Length
Standard Arm: 3 ft 3 in | Track On Ground: 3 ft 6 in
Track Width
Shoe: 7 in
Transport Height
Max: 7 ft 7 in
Width
Undercarriage: 2 ft 7 in | Over Fixed Tracks: 7 ft 7 in
Dimensions
Tailswing Radius: 2 ft 4 in | Ground Level Reach - Mono Boom: 11 ft 8 in | Vertical Wall - Mono Boom: 5 ft 9 in
Ground Clearance
5.7 in
Height
Dump - Mono Boom: 7 ft 5 in
Depth, Maximum
Dig - Mono Boom: 6 ft 7 in
Capacities
Hitch Lift Capacity
End Lift - 3.0m Reach: 480 lb | Side Lift - 3.0m Reach: 240 lb | End Lift - Max Reach: 460 lb | Side Lift - Max Reach: 240 lb
Weights
Weight, In Running Order
Operating: 3194 lb
Features
Features
Dozer Blade Type: Straight | Number Of Main Pumps: 1
