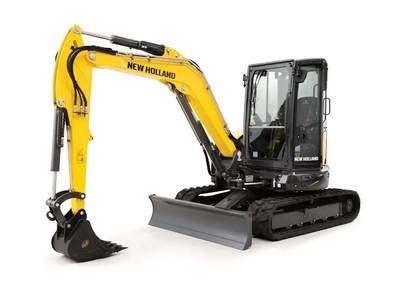

2026 New Holland Construction Mini Excavators E50D
D Series mini excavators from New Holland Construction are built in-house and are designed for an improved operator experience, performance and jobsite efficiency. The E50D is a more capable, versatile machine tailored for construction crews, landscapers, utility contractors and municipalities looking to do more with a compact framework.
Features may include:
MINI EXCAVATOR, BIG POWER- The E50D is powered by a 58.7 hp (43.8 kW) Stage V-certified Kubota engine, known for durability, low emissions and fuel-saving features like Eco Mode, auto idle and a reversible cooling fan to keep radiators clear and engines running at optimal temperatures. This power is housed in a compact and easily transportable package, measuring 8 ft 5 in (2570 mm) in height and 18 ft 4 in (5580 mm) in overall transport length.
- Specify your D Series compact excavator with the arm length to best suit your requirements. Length on the E50D standard digging arm measures up to 4 ft 11 in (1.5 m) and 5 ft 9 in (1.75 m) with the long arm.
- The standard arm on the E450D provides a maximum 12 ft 10 in (3920 mm) of dump height and 9666.8 lbf (4300 daN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 13 ft 5 in (4080 mm) in maximum dump height.
- Powering demanding attachments is a key New Holland advantage.With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking.The E50D arrives ready to run a wide array of attachments like hydraulic hammers, compaction plates, grapples and mulchers. Models are available with factory-installed couplers, buckets and thumbs.
- For contractors and operators, serviceability is a key component to weigh when considering mini excavators. The E50D includes a tipping cab/canopy for full engine access, as well as three large side and rear panels that offer fast access to key service points. Just two bolts need to be removed to tip the cab.
E50D Specs & Compare
Engine
Engine
Model: D1803
Displacement
135.2 in³
Rated Engine Speed
2200 rpm
Engine Power
Gross: 58.7 hp
Operational
Operating Speed
Travel - Low/High: 1.6 mph / 2.8 mph
Operating Conditions
Arm Tearout: 5283 lbf | Bucket Breakout: 9666.8 lbf
Hydraulics
Hydraulic Flow
Main Pump: 34.1 gallon (US)/min
Dimensions
Length
Standard Arm: 4 ft 11 in | Track On Ground: 6 ft 4 in
Track Width
Shoe: 16 in
Transport Length
Mono Boom: 18 ft 4 in
Transport Height
Max: 8 ft 5 in
Width
Undercarriage: 6 ft 3 in | Over Fixed Tracks: 6 ft 3 in
Dimensions
Tailswing Radius: 3 ft 1 in | Ground Level Reach - Mono Boom: 18 ft 1 in | Vertical Wall - Mono Boom: 8 ft 3 in
Ground Clearance
11 in
Height
Dump - Mono Boom: 12 ft 10 in
Depth, Maximum
Dig - Mono Boom: 10 ft 11 in
Capacities
Fuel Capacity
Tank: 19.8 gallon (US)
Hydraulic Capacity
Tank: 17.2 gallon (US)
Hitch Lift Capacity
End Lift - 3.0m Reach: 4652 lb | Side Lift - 3.0m Reach: 1940 lb | End Lift - Max Reach: 2535 lb | Side Lift - Max Reach: 1036 lb
Weights
Weight, In Running Order
Operating: 10912 lb
Features
Features
Dozer Blade Type: Straight | Number Of Main Pumps: 1
