We’ve put 100 years of pushing-the-limits, ruler-of-the-blade, and never-back-down badassery into our newly created Titan MAX. Our engineers have commercial contractor brains, but are evil-geniuses when it comes to delivering for the guy with some serious, undomesticated acreage. The Titan MAX is built on a commercial-worthy blue print, from a pro gene pool, with truly Iron Forged features and durability. Enjoy the comforts of being a Titan of industry with a work- and worker-friendly ride, seating, on/off access and more. If you’re looking for commercial level features, unmatched durability, user-friendly amenities, and powerful reliability all in one mega monster—Meet Titan MAX. Born and raised in the heartland of America, this MAXed-out machine grabs work by the horns, rides roughshod over it and shuts it down.

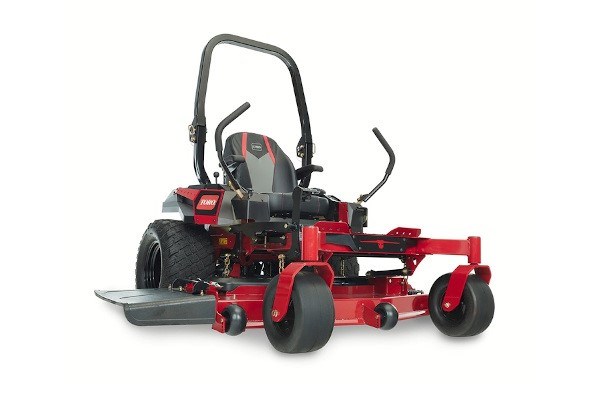

60 in. (152 cm) TITAN® MAX Zero Turn Mower (76601) Features & Benefits
Rock Solid Foundation
Built on an ultra-strong tubular steel frame.
Big Power
Powered by a 26 hp* Kohler 7000 Series engine with cannister air cleaner.
IronForged® Deck
Commercial-grade IronForged® high strength grade 10-gauge steel deck with bull nose reinforced leading edge.
Ultimate Traction
Massive 23" drive tires feature wide aggressive tread that deliver traction.
Easy Height-of-Cut Adjustment
Adjust your attack quickly, easily and accurately with the drop pin to achieve the precise and perfect height-of-cut.
Hassle-Free Maintenance
Less time maintaining your gear and more time reigning over your work with toolless air filter replacement.
Rubber Discharge Chute
Trim close without damaging landscape structures or your chute.
Step-Through Front End
Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
Cup Holder
Stay cool and hydrated with a built-in cup holder.
60 in. (152 cm) TITAN® MAX Zero Turn Mower (76601) Specs & Compare
| Armrests | Standard |
| Blade Tip Speed | 18,908 ft/min / 5,763 m/min |
| Box Dimensions | 91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm |
| CARB Compliant | Not CARB Compliant |
| Caster Tires | 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic |
| Controls | Dual Wrap Around Levers |
| Cup Holder | Standard |
| Deck Design | 60" (152 cm) Fabricated 10 ga. High Strength with bull nose |
| Deck Material | 10 Gauge High-Strength Steel |
| Deck Size | 60 in / 152 cm |
| Discharge Chute | Rubber |
| Drive Tires | 23 in. x 12 in. - 12 in. (58.4 cm x 30.5 cm - 30.5 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 26 hp* Kohler 747 cc with Pro Air Cleaner |
| Engine Brand | Kohler |
| Engine Displacement (cc) | 747 cc |
| Engine Horsepower | 26.0 hp |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 9.0 mph / 14.4 kph |
| Forward Mowing Speed | Up to 9.0 mph / 14.4 kph |
| Front Bumper | Reinforced Bull-Nose |
| Fuel Capacity | 7 gal. / 26.5 L / 28 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 - 5.0 in. / 3.8 - 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Standard |
| Included in the Box | 1 Battery, Engine Oil |
| Number of Blades | 3 |
| Product Features | Cup Holder, Electric Start, Hitch Bracket, Hour Meter |
| Product Type | TITAN Max |
| Product Use | Residential |
| Recommended Oil Type | 10W - 30 with filter change |
| Roll-Over Protection System (ROPS) | Standard |
| Seat | 23" Handcrafted High Back with Armrests and Toro Logo |
| Spindle Housing | 8 in / 20.3 cm Cast Aluminum |
| Start Type | Electric |
| Steering Controls | 1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened |
| Steering Dampeners | Pro-Control Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 13 in. x 6.5 in. ( 33.3 cm x 16.5 cm) Front, 22 in. x 11 in. (55.8 cm x 27.9 cm) Rear |
| Transmission | Hydrostatic |
| Weight | 876 lbs / 397.3 kg |
| Yard Size | Up to 7 acres |
Disclaimer
Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only.
Actual products offered for sale may vary in design, required attachments and safety features.
*26 HP gross (747 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kohler®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for warranty details.
