This isn’t just a mower. It’s the ultimate tool for ruling your turf. We’ve taken all the raw power and unyielding strength that makes the TITAN legendary and cranked it up to the MAX. Armed with even more commercial-grade force, from the upgraded transmission to the deck struts, this beefed-up beast is built to obliterate any challenge your acreage throws at it.

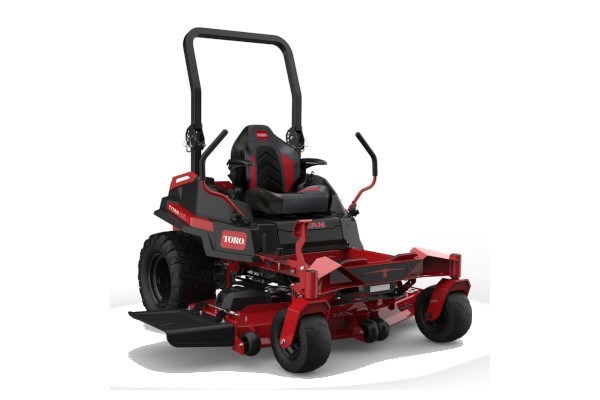

60 in. (152 cm) TITAN® MAX Zero Turn Mower (76606) Features & Benefits
Full-Throttle Traction.
Massive 23" rear tires feature aggressive treads meant to bring Mother Nature to her knees.
Tread Widely.
Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
Lead the Way.
Power forward, knowing you've got visibility in any environment with the integrated LED task light.
Rock Solid Support
Built-in arm rests keep you steady and in control so you can push harder, go longer, and never back down.
Unleash Unstoppable Power.
No matter the challenge, the upgraded transmission drives your forward with maximum force.
Total Comfort. Total Control.
No terrain can throw you off your game. Upgraded compression springs amp up suspension, keeping you locked in on the cut.
Fuel Your Domination.
With a 7-gallon fuel capacity, you own the job. No refills, just relentless power.
60 in. (152 cm) TITAN® MAX Zero Turn Mower (76606) Specs & Compare
| Anti Scalp Wheels | 4 Standard |
| Armrests | Standard |
| Blade Tip Speed | 17,852 ft/min / 5,441 m/min |
| Box Dimensions | 91 in. x 70.25 in. x 52.25 in. / 231.1 cm x 178.4 cm x 132.7 cm |
| CARB Compliant | Not CARB Compliant |
| Cup Holder | Standard |
| Deck Design | 10-Gauge steel IronForged® with fully weld grade 50 Steel bumper |
| Deck Material | 10 Gauge High-Strength Steel |
| Deck Size | 60 in / 152 cm |
| Discharge Chute | Rubber |
| Drive Type | Rear-Wheel Drive |
| Engine | 26 hp* Kohler 747 cc |
| Engine Brand | Kohler |
| Engine Displacement (cc) | 747 cc |
| Engine Horsepower | 26.0 hp |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 9.0 mph / 14.4 kph |
| Forward Mowing Speed | Up to 9.0 mph / 14.4 kph |
| Front Bumper | Bull-Nose |
| Fuel Capacity | 7 gal. / 26.5 L / 28 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 - 5.0 in. / 3.8 - 12.7 cm |
| Hitch Bracket | Standard |
| Number of Blades | 3 |
| Product Features | Cup Holder, Electric Start, Hitch Bracket |
| Product Type | TITAN Max |
| Product Use | Residential |
| Recommended Oil Type | 10W - 30 with filter change |
| Roll-Over Protection System (ROPS) | Standard |
| Seat | 20" Gaming Style |
| Spindle Housing | 8 in / 20.3 cm Cast Aluminum |
| Start Type | Electric |
| Steering Controls | Dual Wrap Around Levers |
| Steering Dampeners | Pro-Control Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | Tires, Drive: 23 in. x 11 in. - 12in. (58.4 cm x 27.9 cm - 30.5 cm) Tires, Front: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) |
| Transmission | HG ZT3100 |
| Weight | 839 lbs / 380.6 kg |
| Yard Size | Up to 7 acres |
Disclaimer
Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
*26 HP gross (747 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kohler®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for warranty details.
